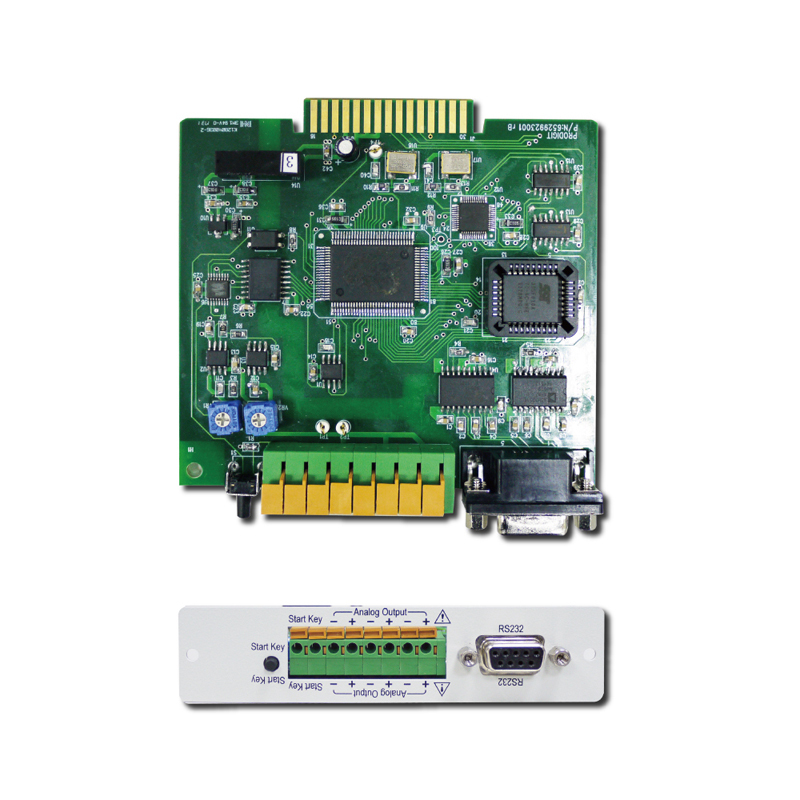

9923 PROGRAMMABLE DC LOAD CURRENT WAVEFORM GENERATOR

Features

l Support the following series of DC electronic load

3300F Series Electronic Load Mainframe ¡]3300F Four Channel Mainframe¡B3305F Two Channel Mainframe¡B3302F Single Channel Mainframe¡^

3310F Series¡]75W~350W¡^

3340G Series¡]150W~300W¡^¡]No included 33401G¡^

33430G Series¡]1800W / 3600W¡^

3350F Series¡]600W~1800W¡^

3360F Series¡]600W~14.4KW¡^

33500 Series¡]2.4KW~14.4KW¡^

34000A Series¡]5KW~40KW¡^

36000A Series¡]50KW / 60KW¡^

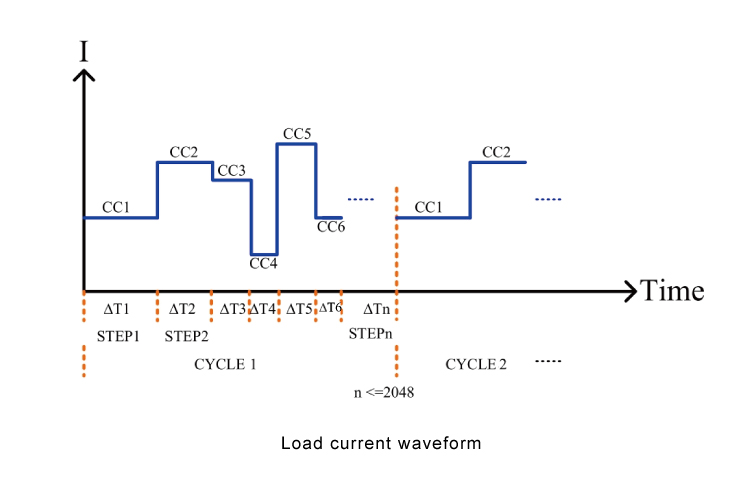

l 9923 application software can be used to edit arbitrary waveform, providing electronic load simulation different sink current conditions

l The current waveform to be simulated can be download by the oscilloscope

l Up to 2048 timing steps can be edited.

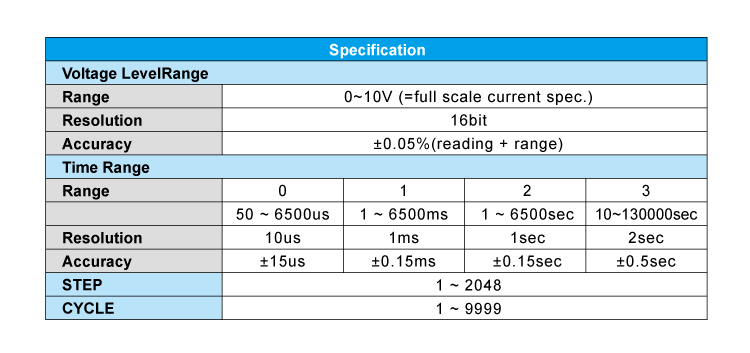

Specifications
